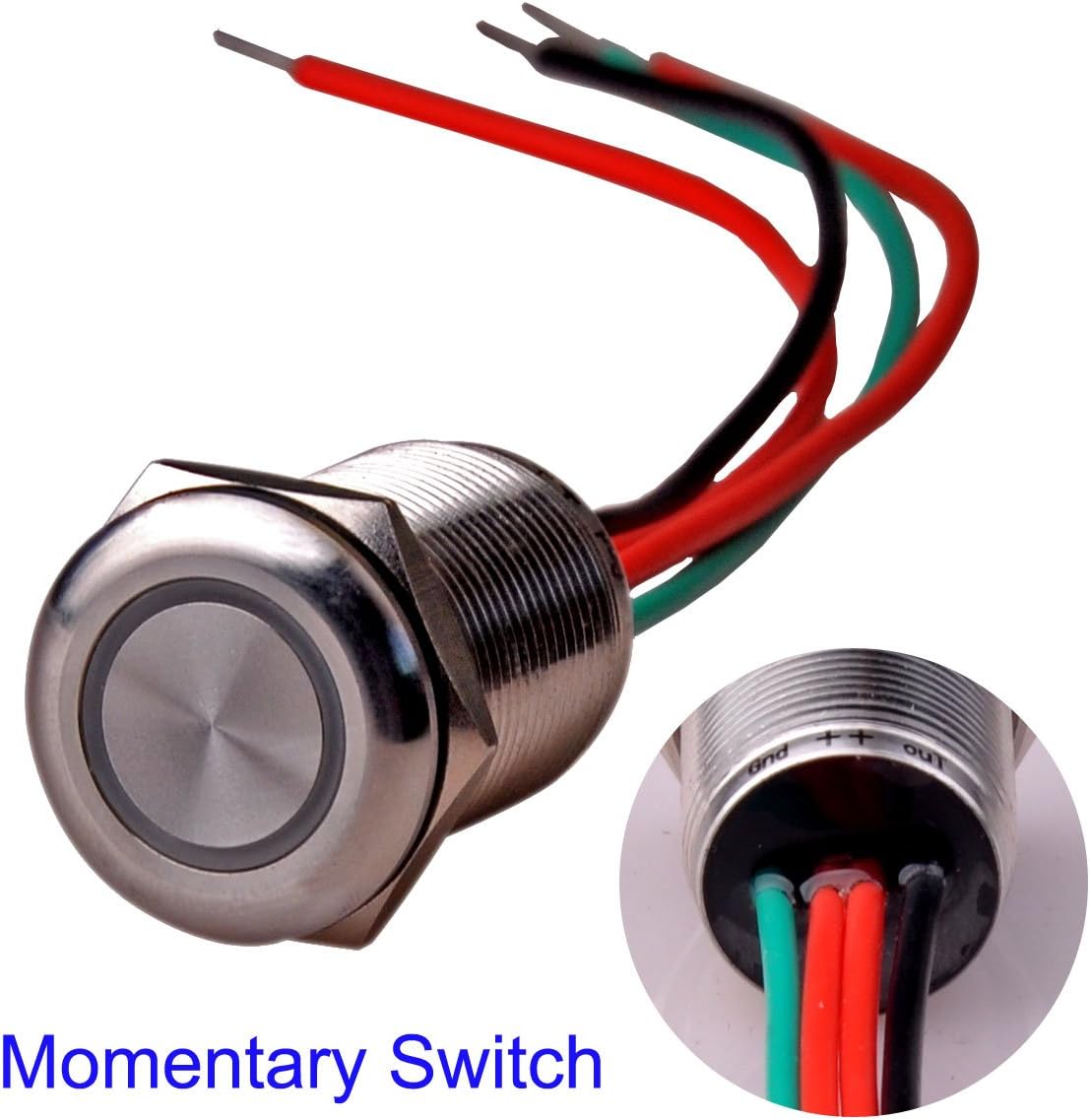

Touch Switch UT19W1 Momentary Switch DC 6V to 24V Blue LED Suitable for 19mm 3/4" Mounting Hole
Product details
| Management number | 237064573 | Release Date | 2026/07/10 | List Price | US$4.75 | Model Number | 237064573 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
What You Get: 1 * Touch Switch 1 * Instruction What's the Touch Switch: Touch switch, just touch it! It is different from the push button switch. You don't need to push anything, just touch it! Like touch your smartphone! This is a perfect choice if you are in need of a fashion switch! On the front of the switch is an illuminated blue LED ring. On the back there are 4 wires, replace the ordinary terminal pins. Make switch installation a breeze! The touch switch is rated for 7A MAX /DC 6-24V. What's the Touch Switch Used for: Most often the Momentary switch is used for lights, Doorbell button, Horn Switch, Kill Switch or any circuit controls. About Momentary Switch type: The light (device) is off when initially connecting to electricity. Touch and hold it to turn the light on. Release to turn it off. In other words, the light (device) will be on when being touched. What's Note:*The input power need to be constant-voltage source. A constant-current source (like LED driver, Oupput: DC12-24V 300ma) CANNOT fit the touch switch! *The touch switch doesn't work with wet or damp fingers. *The touch switch cannot be used in AC circuit. Don't exceed the rating volts! Only DC 6 - 24V. What's the Customer Support: If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you. Specifications: Head diameter: 7/8" ( 22mm ) Mounting hole size: 3/4" ( 19mm ) Depth inc contacts: 1.1" ( 28mm ) Switch Type: Momentary Switch Input Voltage: DC 6V-24V Output Current: 7A MAX LED voltage: DC 6V-24V LED color: Blue (always ON) Head shape: Flat Enclosure material: Stainless Steel Protection level: IK10 Electrical life: 500,000 cycles Operating Temperature: -20℃ ～ +55℃
- Touch switch, just touch it!
- Momentary Switch Type: Touch and hold it to turn the device ON; Release to turn it OFF
- Blue LED ring always light ON, make you quickly find the switch at night or in the dark
- The wires replace the terminal pins, make installing very easy
- Touch Switch, normally be used to control the lights. Don't exceed the rating amps and volts, you can run it on your other projects
| ASIN | B07D2DPNZW |
|---|---|
| Color | Momentary |
| Wattage | 168 watts |
| Terminal | Pins |
| Brand Name | Ulincos |
| Unit Count | 1.0 Count |
| Part Number | UT19W1B |
| Switch Type | Touch Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Touch |
| Manufacturer | Ulincos |
| Actuator Type | push button switch |
| Material Type | Stainless Steel |
| Mounting Type | Wall Mount |
| Connector Type | Wire |
| Control Method | Touch |
| Current Rating | 7 Amps |
| Operation Mode | ON-NONE-OFF |
| Controller Type | Push Button, Ring |
| Item Dimensions | 7.09 x 0.87 x 0.87 inches |
| Number of Items | 1 |
| Contact Material | Stainless Steel |
| Operating Voltage | 24 Volts |
| Compatible Devices | Lights, Doorbell, Horn, Kill Switch, Circuit Controls |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Smart Home Compatibility | Not Smart Home Compatible |
| Upper Temperature Rating | 55 Degrees Celsius |
| International Protection Rating | IP54 |
